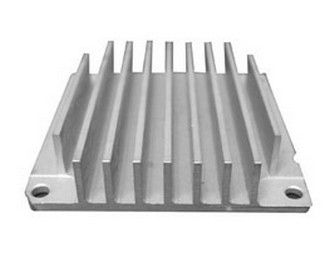

Machines 6063-T5 Aluminium Heatsink Extrusions with alodine surface treatment

Place of Origin : China

Brand Name : HT

Certification : CA ,CE

Model Number : KTH-007

MOQ : 1 ton

Packaging Details : Ep paper ,kraft ,pallet

Delivery Time : 20days

Payment Terms : T/T ,L/C

Supply Ability : 100 000ton each month

product name : Aluminum Heatsink Extrusion Profiles

Alloy : 6063,6061,6005

Material : Aluminum

Suface Treatment : Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated

Deep process : Milling, Drilling, Bending,Cutting

Temper : T4, T5, T6 ,T66

Contact Now

Machines 6063-T5 Aluminium Heatsink Extrusions with alodine surface treatment







Material:Aluminum
Temper: T4, T5, T6 ,T66
Alloy:6063,6061,6005 or according to customer’ s choice
Color:clear, satin, bronze, black, golden, silver, other multicolor






Description:





Item

Machines 6063-T5 Aluminium Heatsink Extrusions with alodine surface treatment

Material

Alloy 6063, 6061,6005,6060 or according to customer’ s choice

Temper

T3, T4, T5, T6

Surface

Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc.

MOQ

1  ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

Profile type

Aluminum Extrusion Heatsink which is  used in medical equipment ,LED Heat sink ,CPU Cooler , Led Lamp ,Led light , notebook cooler ,and some other filed .

Processing

Aluminum profile extruding ,Precise cutting,Straight rectification,Bending,Drilling,Tapping,Stamping,Pulling,CNC mill, CNC lathe. For precious machining and cutting, length tolerance can be 0.2mm, hole tolerance can be 0.05mm .

Moulding

1. Using our mould, free; 2. Using customer’ s drawing, opening mould fee need to be paid .

Certificate

ISO14001:2004, ISO9001:2000

Standard

Meet the China national standard GB/T6892-2006 and Europe standard EN12020-1,2(2001) and American standard AAMA611-98.

FOB Port

Shanghai, etc.





Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



2.Specifications:



Excellent material for smooth and subtle edges

Elegant appearance

Surface treatment: colorful anodized or electrostatic powder coated

Suitable for constructions and other industrial purposes

Customized surface finishes are welcome





Competitive Advantage:



1)Engineering design and support.

2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years







Casting Workshorp :
