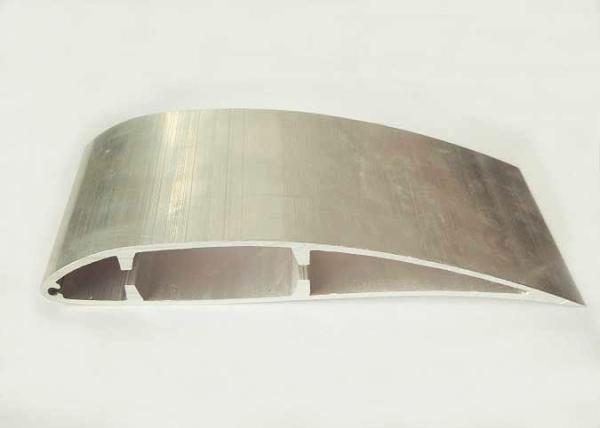

Powder Painting Fan Blade For Cooling Towers , Ceiling Aluminum Fan Blades
We are one of the biggest aluminium factory in the east of China . Owning the most species-wide of aluminum profie in the world. Marketing occupancy of Fan blade profile in China is No. 1 .Deep Processing Ability for aluminum and CNC: Fabrication, Drill hole, milling, de-burr, chamfer, stretch bending, welding and so on.
Descrition:
| 1 | Business Type | Manufacturer |
| 2 | Standard | GB 5237-2008, ASTM B221, EN755-9. |
| 3 | Product Series | Aluminum profile for construction,industry,furniture. |
| 4 | Price | Based on LME Aluminium Ingot 3 monthes seller price (www.ime.com)+processing fee. |
| 5 | Payment Term | T/T,L/C at sight. |
| 6 | Surface Treatment | Anodizing, powder coating, electrophoresis, fluorocarbon liquid painting. |
| 7 | Specification | Alloy: 6063, 6060, 6061, 6005, 6082.
State: T5/T6.
Length: 1m-6.5m.
Anodizing thickness: 10-25micro.
Powder coating thickness: >60micro.
Tensile strength: >16mpa.
Yield strength: >110mpa.
Extensibility: >8%.
Hardness(HW): >8. |
| 8 | Packing | Kraft paper, protective film, plastic shrink, pearl wool, box, wood frame. |
| 9 | MOQ | 500kg per item. |
| 10 | Delivery Time | 10 days cut the moulds, another 30 days complete the mass production. |
| 11 | Normal Order Sequence | 1.Conform the drawings, colors and price;
2.Pay the mould fee and we start to make moulds;
3.We send samples to you for your confirmation;
4.Make the payment og 30% deposit, we start production;
5.Delivery. |
Specifications:
1. Primary Technical Data
1) Chemical composition
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
3. Surface Treatment of Sections
|
(Class) | (μm),not diminish than | acid-resistant | abrasion resistance |
| (Min-average film
thickness) | (Min-part film
thickness) | CASS | (S) | |
| (h) | Class | (f, g /μm) |
| AA10 | 10 | 8 | 16 | ≥9 | ≥50 | ≥300 |
| AA15 | 15 | 12 | 32 | ≥9 | ≥75 | ≥300 |
| AA20 | 20 | 16 | 56 | ≥9 | ≥100 | ≥300 |
| AA25 | 25 | 20 | 72 | ≥9 | ≥125 | ≥300 |
Aluminium Profile Advantage
Experience:
More than 15 years production and technology experience and 10 year's exporting experience.
Market:
Northern and Southern America, Africa and Middle East, Asia etc.
Technique:
Oxidation,Spray,Electrophoresis.We can also do aluminium furniture which resembles like real solid wood furniture.
Sample:
Free samples are available. We can do various customized aluminium profile.

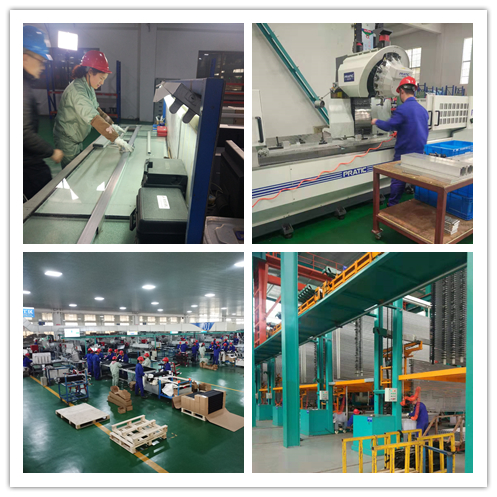

Management:
We have large workshops for different production techniques.Different sections help us control the good's quality and keep the workshop clean.
