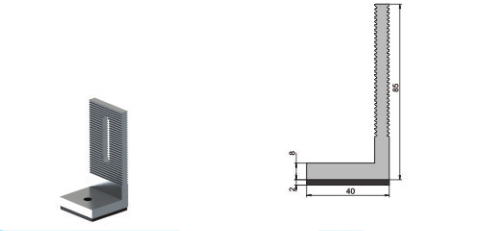

L Foot Solar Roof Mounting Systems With Frameless / Framed Solar Panel , With Screw / Bolt
1. Alloy :6063,6061,6005 6060,6082 or according to customer's choice
2. Material:Aluminum
3. Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4. Deep process: Milling, Drilling, Cutting.
5. Color:clear,black
6. Temper: T5, T6
Description:
Hentec Solar roof mounting system refers to a solar panel mounting system suitable for both flat roofs and sloping roofs. With unique aluminum alloy rails, Z-type clamps ,and special rail connection techniques, etc, there is no need for on-site processing anymore. Thus, solar panel installation becomes simple and easy.
To suit needs for different kinds of hooks. Hentec solar roof mounting system comes with different kinds of hooks. For instance, we have stainless steel hooks for tile roofs ,L-type hooks for steel plate roofs and inclined standing lets for flat roofs.
Applications:
1. Hentec solar roof mounting system is convenient and easy to use.
2. Its components come with flexible combination and good compatibility.
3. Large span.
4. According to customer's demands, the mounting bracket can parallel to the roof or for an angle between the roof.
5. We can provide customized solar roof mounting system according to customers' requirements.
Specifications:
- Material: 6060-T5 aluminum alloy
- Surface treatment methods : silver anodized
- Installation site : flat or sloping roofs
- Roof material : tile in majority
- Installation angle : max.60 degree
- Installation height : max .20m
- Wind resistance : 60m/s
- Snow load :1.4KN each square meter
- Solar panel type : frameless or framed
- Assembly method : longitudinal or lateral
- Solar panel size : The solar roof mounting system is suitable for all types of solar panel .
- International standard :AS/NZS1170 ,and more
- Supporting rails : aluminum alloy extrusions
- Color : natural color
- Warranty :10 years
